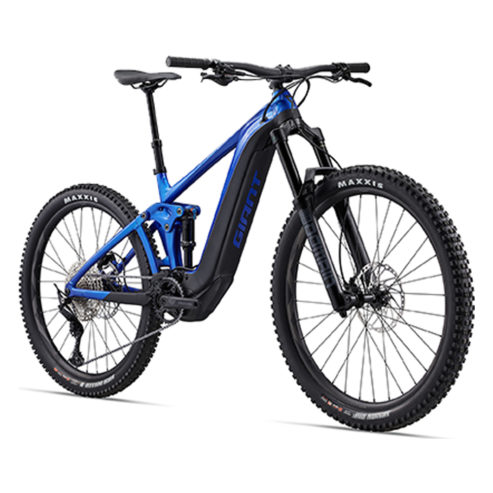

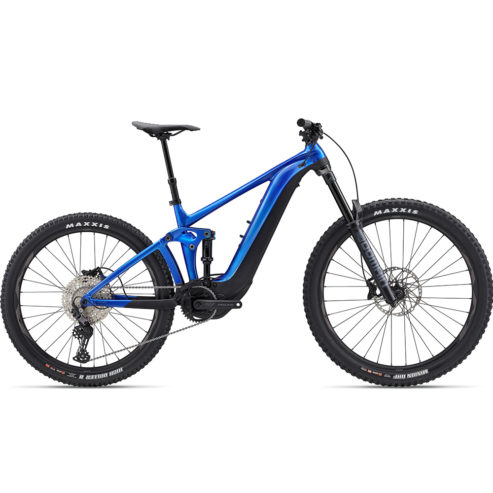

2023 Giant Reign E+ 3 Mountain Bike
FRAME | ALUXX SL-grade aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, ‘Boost’ 148x12mm, Universal Derailleur Hanger |
---|---|
FORK | RockShox Domain R 29er, 170mm travel, 15×110 Boost, Maxle Stealth, E-bike Approved |
REAR SHOCK | Fox Float DPS Performance, EVOL Large Volume sleeve, 2-position lever, 205×62.5mm Trunnion mount, custom tuned |
BOTTOM BRACKET | n/a |
STEM | Giant Contact SL 35 |
SADDLE | Giant Romero Trail |
SEATPOST | Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170) |
PEDALS | Flat pedal |
GRIPS | Giant Tactal Pro-E, single lock-on |
REAR DERAILLEUR | Shimano Deore 12-speed |
FRONT DERAILLEUR | MRP 1X HD2 custom co-molded chain guide |
CRANK | Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S/M:160, L/XL:165) |
SHIFTERS | Shimano Deore |
CASSETTE | Shimano Deore CS-M6100-12, 10-51T, 12-speed |
CHAIN | KMC e.12 Turbo, EcoProteq, e-bike optimized |
BRAKES | Shimano Deore BR-M420, 4-piston, hydraulic disc, 203mm |
BRAKE LEVERS | Shimano Deore, I-spec EV |
RIMS | Giant AM 29″ [F] 27.5″[R], Tubeless ready, 30mm inner width |
SPOKES | Sapim E-Lite [R] Race [F], e-bike optimized |
FRONT HUB | Shimano MT410 Boost, Center-Lock, [F] 110×15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
REAR HUB | Shimano MT410 Boost, Center-Lock, [F] 110×15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
TIRES | Maxxis Minion DHF 29×2.6″ foldable, Tubeless, EXO+, 3C MaxxTerra[F]Maxxis High Roller II 27.5×2.5″ foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R] |
MOTOR | Giant AM 29″[F] 27.5″[R], Tubeless ready, 30mm inner width |
HUBS | SyncDrive Pro, 85Nm, powered by Yamaha |
BATTERY | EnergyPak Smart 800,EnergyPak Plus range extender compatible (exclude S Size) |
REMOTE | Wireless display compatible |
