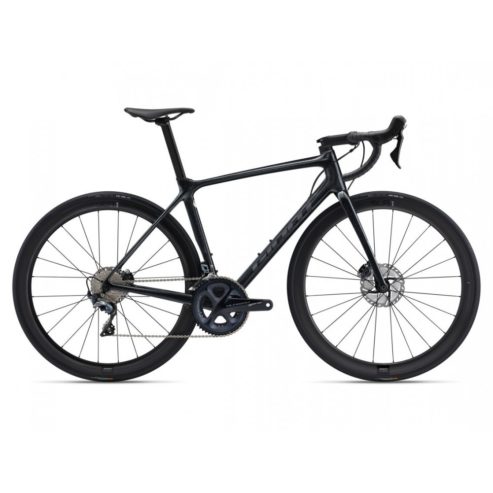

2023 GIANT TCR ADVANCED PRO DISC 1
This podium-seeking road racer is engineered with an Advanced-grade composite frame that boasts an outstanding stiff-to-weight ratio, along with aerodynamic tube shaping in the headtube, downtube and fork. It also features added frame and fork clearance for larger diameter tires up to 32mm, making it a versatile race machine for all types of road conditions. With its proven Compact Road geometry, OverDrive 2 front end, flat-mount disc-brake integration and smooth-riding Variant seatpost, it’s a race-tuned performer that excels in all aspects of road riding.
| FRAME | Advanced-Grade Composite, disc |
|---|---|
| FORK | Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc |
| SHOCK | N/A |
| HANDLEBAR | Giant Contact SL XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm |
| GRIPS | Stratus Lite 2.0 |
| STEM | Giant Contact SL XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
| SEATPOST | Giant Variant, composite, -5/+15mm offset |
| SADDLE | Giant Fleet SL |
| PEDALS | N/A |
| SHIFTERS | Shimano Ultegra |
| FRONT DERAILLEUR | Shimano Ultegra |
| REAR DERAILLEUR | Shimano Ultegra |
| BRAKES | Shimano Ultegra hydraulic, Shimano rotors [F]160mm, [R]140mm |
| BRAKE LEVERS | Shimano Ultegra hydraulic |
| CASSETTE | Shimano Ultegra, 11-speed, 11×30 |
| CHAIN | KMC X11SL-1 |
| CRANKSET | Shimano Ultegra, 36/52 with Giant PowerPro power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| BOTTOM BRACKET | Shimano, press fit |
| RIMS | Giant SLR 1 42 Carbon Disc WheelSystem |
| HUBS | Giant SLR 1 42 Carbon Disc WheelSystem, 12mm thru-axle |
| SPOKES | Giant SLR 1 42 Carbon Disc WheelSystem |
| TIRES | Giant Gavia Course 1, tubeless, 700x25c (28mm), folding |
| EXTRAS | computer mount, tubeless prepared, 32mm max tire size |
| WEIGHT | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
