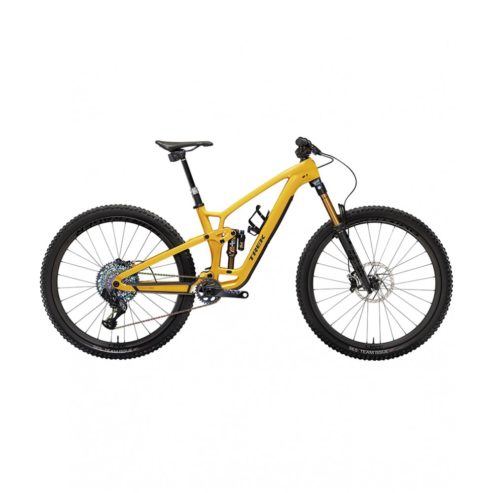

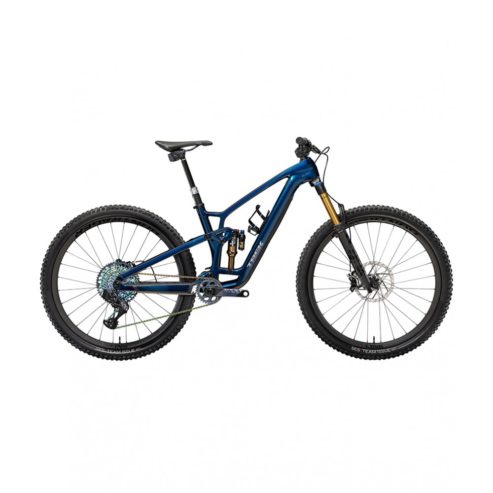

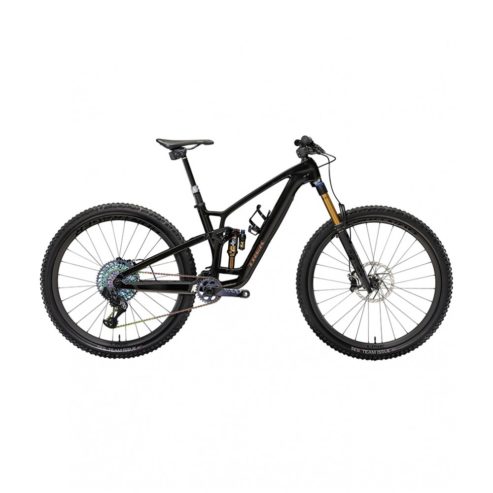

2023 TREK FUEL EX 9.9 XX1 AXS GEN 6 MOUNTAIN BIKE
Fuel EX 9.9 XX1 AXS is a performance-first trail bike built for riders who have an appreciation for the finest things in life. It combines a cream of the crop carbon frame with top-tier components, from the carbon fiber wheels all the way up to the 150mm Kashima-coated FOX Factory fork, and fully wireless SRAM XX1 drivetrain. It’s a bike that rules the mountain and doesn’t hesitate to lay claim to its domain, ripping up rock gardens, blasting berms, and rocketing back to the top to conquer it all once again.
| FRAME | OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel |
|---|---|
| FORK | Fox Factory 36, Float EVOL air spring, GRIP2 damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel |
| REAR SHOCK | Fox Performance Float X, 2-position damper, 185mm x 55mm |
| BOTTOM BRACKET | SRAM DUB MTB Wide, 73mm, BSA threaded |
| STEM | Bontrager RSL Integrated, OCLV Carbon, length – 35mm (XS,S) / 45mm (M,ML,L,XL) |
| HANDLEBAR | Bontrager RSL Integrated, OCLV Carbon, length – 35mm (XS,S) / 45mm (M,ML,L,XL) |
| HEADSET | Integrated cartridge bearing, 1-1/8” top, 1.5” bottom, angle adjust cup compatible |
| GRIPS | Bontrager XR Trail Elite, nylon lock-on |
| BRAKES | SRAM Code RSC 4-piston hydraulic disc |
| REAR DERAILLEUR | SRAM XX1 Eagle AXS |
| SHIFT LEVERS | SRAM Eagle AXS, wireless, 12 speed |
| CHAIN | SRAM XX1 Eagle, 12 speed |
| CASSETTE | SRAM Eagle XG-1299, 10-52, 12 speed |
| CRANKSET | SRAM XX1 Eagle, DUB, 30T alloy ring, 55mm chainline, 170mm length |
| FRONT WHEEL | Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle |
| REAR WHEEL | Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle |
| FRONT TYRE | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50″ |
| REAR TYRE | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50″ |
| SADDLE | Bontrager Arvada, austenite rails, 138mm width |
| SEATPOST | RockShox Reverb AXS, 340mm length (XS,S) / 440mm length (M,ML) / 480mm length (L,XL) |
| WEIGHTS | M-14.11kg / 31.11lbs |
