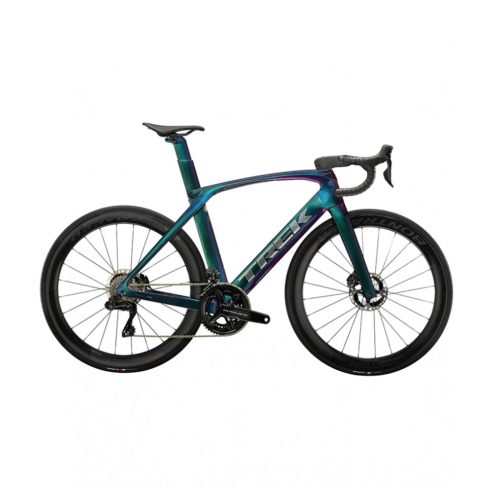

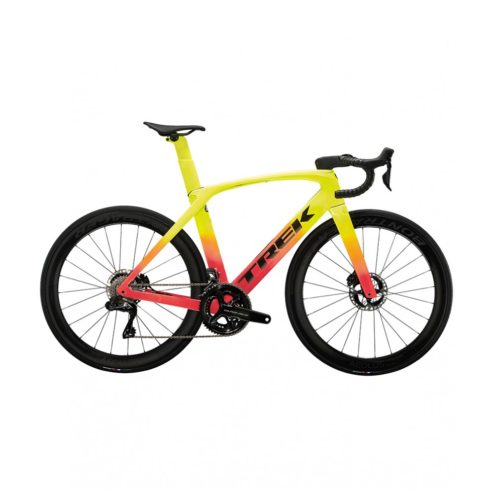

2023 Trek Madone SLR 9 Gen 6 Road Bike
The Madone SLR 9 Disc is the ultimate aero super bike. An ultra-lightweight 800 Series OCLV Carbon frame, adjustable vertical handling and smoothness, and the new Shimano Dura-Ace Di2 wireless electronic drivetrain make this bike your perfect choice when looking for a fast, shiny, aero road bike.
| FRAME | Trek 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
|---|---|
| FORK | Trek Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle |
| BOTTOM BRACKET | SRAM DUB, T47 threaded, internal bearing |
| STEM | Trek Madone aero, length – 90mm (47-54) / 100mm (56,58) / 110mm (60,62) |
| HANDLEBAR | Trek Madone adjustable aero VR-CF, OCLV Carbon, width – 380mm (47) / 400mm (50,52) / 420mm (54-58) / 440mm (60,62) |
| BAR TAPE | Bontrager Supertack Perf tape |
| FRONT BRAKE | Shimano MT900 brake rotor, centerlock, 160 mm |
| REAR BRAKE | Shimano MT900 brake rotor, centerlock, 160 mm |
| FRONT DERAILLEUR | Shimano Dura-Ace R9250 Di2, braze-on, down swing |
| REAR DERAILLEUR | Shimano Dura-Ace R9250 Di2, 34T max cog |
| SHIFT LEVERS | Shimano Dura-Ace R9270 Di2, 12 speed |
| CHAIN | Shimano Dura-Ace/XTR M9100, 12 speed |
| CASSETTE | Shimano Dura-Ace R9200, 11-30, 12 speed |
| CRANKSET | Shimano Dura-Ace R9200, 165mm length (47), 170mm length (50,52), 172.5mm length (54-58), 175mm length (60,62) |
| FRONT WHEEL | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle |
| REAR WHEEL | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, Shimano 11/12 hub, 142x12mm thru axle |
| FRONT TYRE | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c |
| REAR TYRE | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c |
| SADDLE | Bontrager Aeolus P2 Elite, 155mm width (52) / Bontrager Aeolus Elite, austenite rails, 145mm width (54-58) |
| SEATPOST | Bontrager Aeolus P2 Pro, carbon rails, 155mm width (47-52) / Bontrager Aeolus Pro, carbon rails, 145mm width (54-62) |
| WEIGHTS | 56-7.60kg / 16.76lbs |
