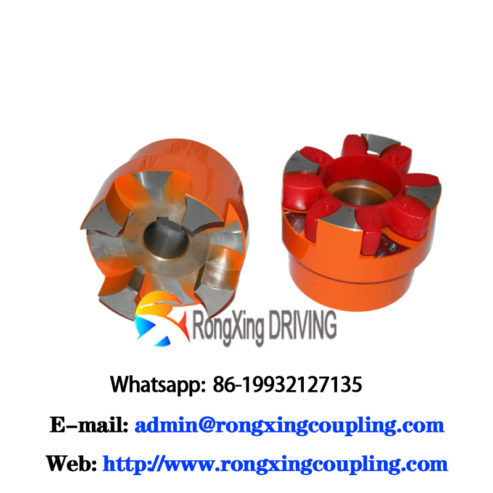

Xl Star Flexible Coupling is made of engineering plastics as elastic elements, suitable for connecting two coaxial axis transmission shaft system, with compensation of two axis relative deflection, buffer, shock absorption performance, transfer torque of 20 ~ 35000N • Ni, working temperature -35 ~ +80°C.
Basic Parameters And Main Dimensions Of Xl Star Elastic Coupling mm
| Model | Nominal Torque Tn N • m | Allowable speed r/mi n | Shaft hole diameter d, d2 | Shaft hole length L | D | D, | D, | E | S | Inertia moment(kg. m2) | Weight(kg) |
| XL1 | 34 | 19000 | 6〜19〜24次 | 25 | 40 | 32 | 40 | 16 | 2 | 0. 0008 | 0. 328 |
| XL2 | 120 | 14000 | 8〜24〜28次 | 30 | 55 | 40 | 55 | 18 | 2 | 0. 0003 | 0. 66 |
| XL3 | 320 | 11800 | 10〜28〜38淤 | 35 | 65 | 48 | 65 | 20 | 2.5 | 0. 0007 | 1. 16 |
| XL4 | 650 | 9500 | 12〜38〜45次 | 45 | so | 66 | 78 | 24 | 3 | 0. 002 | 2. 27 |
| XL5 | 900 | 8000 | 14〜42〜55次 | 50 | 95 | 75 | 94 | 26 | 3 | 0. 005 | 3. 57 |
| XL6 | 1050 | 7100 | 15〜48〜60淤 | 56 | 105 | 85 | 104 | 28 | 3.5 | 0. 008 | 4. 80 |
| XL7 | 1250 | 6300 | 20〜55〜70次 | 65 | 120 | 98 | 118 | 30 | 4 | 0.016 | 7. 37 |
| XL8 | 1280 | 5600 | 22〜65〜75淤 | 75 | 135 | 115 | 134 | 35 | 4.5 | 0. 031 | 10. 89 |
| XL9 | 2930 | 4750 | 30〜75〜90次 | 85 | 160 | 135 | 158 | 40 | 5 | 0. 068 | 17. 73 |
| XL10 | 7200 | 3750 | 40〜90〜100次 | 100 | 200 | 160 | 180 | 45 | 5. 5 | 0. 159 | 29. 60 |
| XLU | 9900 | 3350 | 50〜100〜110淤 | 110 | 225 | 180 | 200 | 50 | 6 | 0. 277 | 41.0 |
| XL12 | 12000 | 3000 | 60〜110〜125淤 | 120 | 255 | 200 | 230 | 55 | 6.5 | 0.51 | 58.6 |
| XL13 | 15000 | 2650 | 60〜125〜145淤 | 140 | 290 | 230 | 265 | 60 | 7 | 1.0 | 88.4 |
| XL14 | 22000 | 2360 | 60〜140〜165次 | 155 | 320 | 255 | 300 | 65 | 7.5 | 1.7 | 120.6 |
| XL15 | 30000 | 2000 | 80〜160〜190淤 | 175 | 370 | 290 | 345 | 75 | 9 | 3. 35 | 179. 1 |
| XL16 | 35000 | 1800 | 85〜180〜220次 | 195 | 420 | 325 | 400 | 85 | 10.5 | 6. 37 | 261.0 |
| Note: 1. No. ※ is the maximum allowable shaft hole.
2, d,/d2, d,/d, d2/d2 can be any combination. 3. The size of countersunk hole should be calculated when using taper hole. |
|||||||||||
