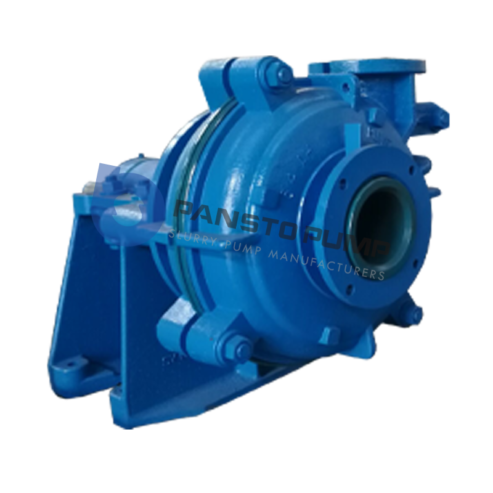

PH Series Slurry Pump
Application: PH series slurry pumps are cantilever centrifugal slurry pumps, which are suitable for transporting strong abrasive, high-concentration slurry or low-concentration high-lift slurry. They can be applied in series connection within the maximum allowable working pressure range of the pump. PH series are widely used in metallurgy, mining, petroleum, chemical industry, coal, electric power, transportation, river dredging, building materials and municipal engineering and other departments.
Structure: PH series slurry pump are cantilever, horizontal, axial suction centrifugal slurry pump. The position of the discharge port of the pump can be installed in eight different angles at intervals of 45 degree per customers’ requirement. The bearing assembly adopts the international leading cylindrical structure, which is convenient to adjust the gap between the impeller and the throat bush, and can be disassembled as a whole during maintenance, and is lubricated with special grease.
Material:
- Wet Parts (impeller, Liners, and Throat bush): high chrome white iron (KmTBCr26, A05)
- Outer casing (Cover Plate, Frame Plate, Base): ductile iron (HT200)
- Shaft: 45#
- Shaft sleeve: 2Cr13
