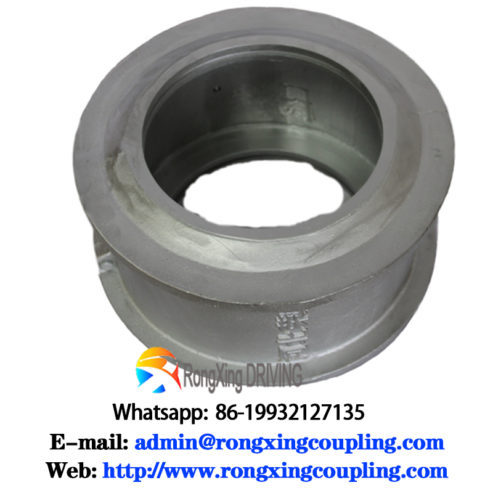

Snake Spring Coupling Housing is suitable for coaxial axis drive shaft system, with certain compensation performance of angular, radial and axial offset between two shafts, operating ambient temperature -30 ~ 150C, transmission torque 45-800000N • m.
The Basic Parameters And Main Dimensions Of The Snake – Shaped Yellow Coupling mm
| Model | Nominal Torque Tn
N • m |
Allowable speed [n] r/min | Shaft hole diameter d mm | Shaft hole length L
mm |
Overall length Lo
mm |
L, mm | D mm | Clearance C mm | inertia moment I
kg. m2 |
Weight
kg |
| JSA1 | 45 | 18 〜28 | 47 | 97 | 66 | 95 | 0. 0014 | 1.91 | ||
| JSA2 | 140 | 4500 | 22 〜35 | 68 | 105 | 0. 0022 | 2. 59 | |||
| JSA3 | 224 | 25 〜42 | 50 | 103 | 70 | 115 | 0. 0033 | 3. 36 | ||
| JSA4 | 400 | 32 〜50 | 60 | 123 | 80 | 130 | 3 | 0. 0073 | 5. 45 | |
| JSA5 | 630 | 4350 | 40 〜56 | 63 | 129 | 92 | 150 | 0.0119 | 7. 26 | |
| JSA6 | 900 | 4125 | 48 〜65 | 76 | 155 | 95 | 160 | 0. 0185 | 10. 44 | |
| JSA7 | 1800 | 55 〜80 | 89 | 181 | 116 | 190 | 0. 0451 | 17. 70 | ||
| JSA8 | 3150 | OvvU | 65 〜95 | 98 | 199 | 122 | 210 | 0. 0787 | 25. 42 | |
| JSA9 | 5600 | 2000 | 75 〜110 | 120 | 245 | 155 | 250 | 0. 1780 | 42. 22 | |
| JSA10 | 8000 | 2250 | 80 〜120 | 127 | 259 | 162 | 270 | □ | 0. 2700 | 54. 45 |
| JSA11 | 12500 | 2025 | 90 〜140 | 149 | 304 | 192 | 310 | 0.5140 | 81.27 | |
| JSA12 | 18000 | 1800 | 110〜170 | 162 | 330 | 195 | 346 | 0. 9890 | 121.00 | |
| JSA13 | 25000 | 1650 | 120〜200 | 184 | 374 | 201 | 384 | 1. 8500 | 178. 00 | |
| JSA14 | 35500 | 1500 | 140〜200 | 184 | 374 | 271 | 450 | 3. 4900 | 234 | |
| JSA15 | 50000 | 1350 | 160〜240 | 198 | 402 | 279 | 500 | 6 | 5. 8200 | 317 |
| JSA16 | 63000 | 1225 | 180〜280 | 216 | 438 | 304 | 566 | 10. 4000 | 448 | |
| JSA17 | 90000 | 1100 | 200〜300 | 239 | 484 | 322 | 630 | 18. 3000 | 620 | |
| JSA18 | 125000 | 1050 | 240〜320 | 260 | 526</p |
