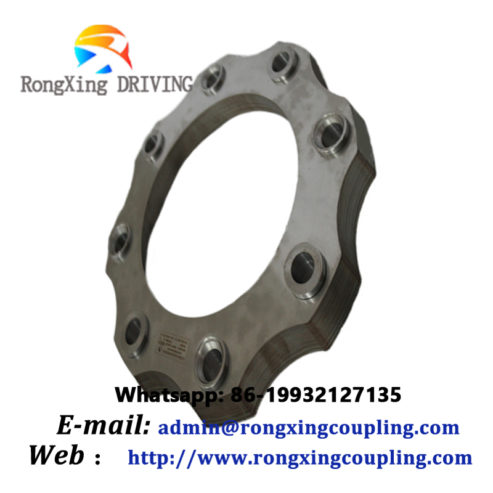

Diaphragm coupling is suitable for connecting two coaxial lines of medium and high speed transmission shafting. With certain axial relative offset compensation ability, smooth transmission, corrosion resistance and other characteristics, operating temperature -20 ~ 250°C, transfer nominal torque 40 ~ 315000N · m
JZM Heavy Machinery Diaphragm Coupling Main Parameters And Dimensions mm
| Model | Nominal Torque TnN • m | Allowable Speed[n] r/min | Shaft Hole Diameter | Shaft Hole Length L | D | D, | S | Twisting Stiffness X106N • m/rad | Inertia Moment kg • m2 | Weight kg |
| d | Y J, | |||||||||
| JZM1 | 40 | 10700 | 14 〜28 | 27 〜62 | 80 | 39 | 8 | 0. 37 | 0. 0026 | 1.37 |
| JZM2 | 63 | 9300 | 20 〜38 | 38 〜82 | 92 | 53 | 8 | 0. 45 | 0. 0073 | 2. 65 |
| JZM3 | 100 | 8400 | 25 〜45 | 44 〜112 | 102 | 63 | 8 | 0. 56 | 0.013 | 4.8 |
| JZM4 | 250 | 6700 | 30 〜55 | 60 〜112 | 128 | 77 | 11 | 0.81 | 0. 042 | 7. 64 |
| JZM5 | 500 | 5900 | 35 〜65 | 60 〜142 | 145 | 91 | 11 | 1.2 | 0. 067 | 9.4 |
| JZM6 | 800 | 5100 | 40 〜75 | 84 〜142 | 168 | 105 | 14 | 1.42 | 0. 165 | 17. 15 |
| JZM7 | 1000 | 4750 | 45 〜80 | 84 〜172 | 180 | 112 | 15 | 1.9 | 0. 27 | 24.5 |
| JZM8 | 1600 | 4300 | 50 〜85 | 84 〜172 | 200 | 120 | 15 | 2. 35 | 0. 387 | 29.4 |
| JZM9 | 2000 | 4200 | 55 〜90 | 84 〜172 | 205 | 120 | 20 | 2. 7 | 0.41 | 30. 38 |
| JZM10 | 2500 | 4000 | 55 〜90 | 84 〜172 | 215 | 128 | 20 | 3. 02 | 0.51 | 33.9 |
| JZM11 | 3150 | 3650 | 60 〜95 | 107〜172 | 235 | 132 | 23 | 3. 46 | 0. 70 | 40. 18 |
| JZM12 | 4000 | 3400 | 60 〜100 | 107〜212 | 250 | 145 | 23 | 3. 67 | 1. 13 | 55. 96 |
