The coupling is suitable for all kinds of coaxial drive systems, using nylon rod cross-sectional shear strength to transfer torque, transfer torque of 160 ~ 160000N • m, working temperature -20 ~ 80C, simple structure, convenient maintenance, with cushioning and shock absorption performance and certain axial deflection compensation ability.

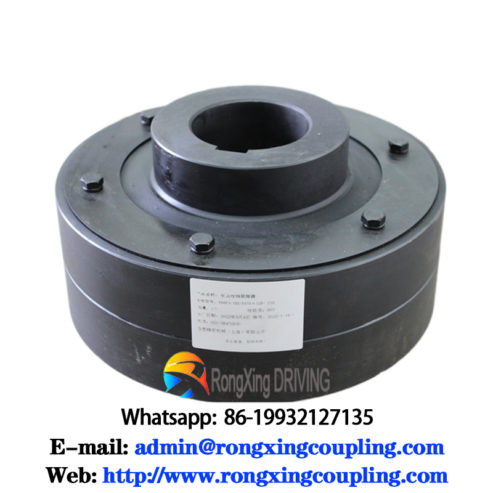

HL Type Elastic Pin Coupling
HL Type Elastic Pin Coupling Main Parameters And Dimensions mm
| Model | Nominal Torque Tn
N • m |
Allowable Speed [n] r/mi n | SHAFT HOLE DIAMETER d dz | Shaft Hole Length | Size | Weight kg | ||
| Y J J, Z Model | D | D, | S | |||||
| L, L | ||||||||
| HL1 | 250 | 8500 | 12 〜24 | 27 〜52 | 90 | 40 | 2.5 | 2 |
| HL2 | 560 | 6300 | 20 〜35 | 38 〜82 | 120 | 55 | 2.5 | 5 |
| HL3 | 1250 | 4750 | 30 〜48 | 60 〜112 | 160 | 75 | 2.5 | 8 |
| HL4 | 2500 | 3870 | 40 〜63 | 84 〜142 | 195 | 100 | 3 | 22 |
| HL5 | 3150 | 3450 | 50 〜75 | 84 〜142 | 220 | 120 | 3 | 30 |
| HL6 | 6300 | 2720 | 60 〜85 | 107〜172 | 280 | 140 | 4 | 53 |
| HL7 | 11200 | 2360 | 70 〜110 | 100〜212 | 320 | 170 | 4 | 98 |
| HL8 | 16000 | 2120 | 80 〜125 | 132〜212 | 360 | 200 | 5 | 119 |
| HL9 | 22400 | 1850 | 100〜140 | 167〜252 | 410 | 230 | 5 | 197 |
| HL10 | 35500 | 1600 | 110〜180 | 167〜302 | 480 | 280 | 6 | 322 |
| HL11 | 50000 | 1400 | 130〜220 | 202〜352 | 540 | 340 | 6 | 520 |
| HL12 | 80000 | 1220 | 100〜180 | 242〜410 | 630 | 400 | 7 | 714 |
| HL13 | 125000 | 1080 | 190〜300 | 282〜470 | 710 | 465 | 8 | 1057 |
| HL14 | 180000 | 950 | 240〜340 | 330〜550 | 800 | 530 | 8 | 1956 |
| Remark ：HL12、HL13、HL14 When using Z-shaped holes, check whether the counterbore is allowed. | ||||||||
