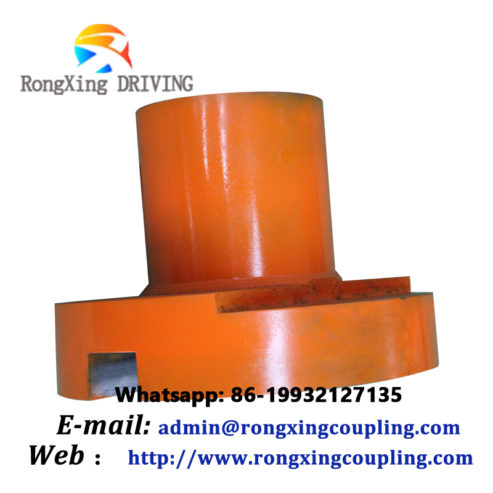

Sl320 Cross Slider Coupling has a large radial displacement, transmission common torque 120-63000N • m, speed 250~70r/min.
SL320 Cross Slider Coupling Basic Performance Parameters And Main Dimensions
| Type | Nominal Torque TnN • m | Allowable Speed [n] r/min | Shaft Hole Diameter d | D | D, | L | H | S | Inertia Moment kg • m2 | Weight kg |
| SL70 | 120 | 250 | 15 〜18 | 70 | 32 | 42 | 14 | 0. 002 | 1.5 | |
| SL90 | 250 | 250 | 20 〜30 | 90 | 45 | 52 | 14 | 0. 008 | 2.6 | |
| SL110 | 500 | 250 | 36 〜40 | 100 | 60 | 70 | 19 | 0. 026 | 5. 5 | |
| SL130 | 800 | 250 | 45 〜50 | 130 | 80 | 90 | 19 | 0.5 | 0. 07 | 10 |
| SL150 | 1250 | 250 | 55 〜60 | 150 | 95 | 112 | 19 | 0. 14 | 15.5 | |
| SL170 | 2000 | 250 | 65 〜70 | 170 | 105 | 125 | 24 | 0. 25 | 22.4 | |
| SL190 | 3200 | 250 | 75 〜80 | 190 | 110 | 140 | 29 | 0.5 | 31.5 | |
| SL210 | 5000 | 250 | 85 〜90 | 210 | 130 | 160 | 33 | 0.9 | 45 | |
| SL240 | 8000 | 250 | 95 〜100 | 240 | 140 | 180 | 33 | 1.6 | 59.5 | |
| SL260 | 9000 | 250 | 100〜110 | 260 | 160 | 190 | 33 | 2 | 76 | |
| SL280 | 10000 | 100 | 110〜120 | 280 | 170 | 200 | 33 | 3 | 94.3 | |
| SL300 | 13000 | 100 | 120〜130 | 300 | 180 | 210 | 43 | 1.0 | 4.3 | 111 |
| SL320 | 16000 | 100 | 130〜140 | 320 | 190 | 220 | 43 | 5.7 | 129 | |
| SL340 | 20000 | 100 | 150 | 340 | 210 | 250 | 48 | 8.4 | 162 | |
| SL360 | 32500 | 100 | 160 | 360 | 240 | 280 | 48 | 19.2 | 258 | |
| SL400 | 38700 | 80 | 170 | 400 | 260 | 300 | 48 | 26. 1 | 305 | |
| SL460 | 63000 | 70 | 200 | 460 | 300 | 350 | 58 | 62.9 | 560 |
