The coupling is suitable for all kinds of coaxial drive systems, using nylon rod cross-sectional shear strength to transfer torque, transfer torque of 160 ~ 160000N • m, working temperature -20 ~ 80C, simple structure, convenient maintenance, with cushioning and shock absorption performance and certain axial deflection compensation ability.

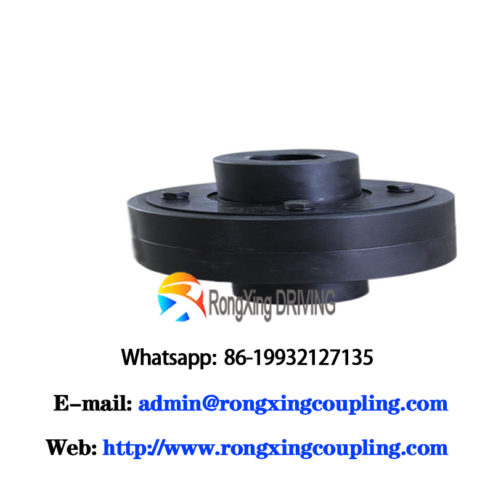

  HL Type Elastic Pin Coupling









                                        HL Type Elastic Pin Coupling Main Parameters And Dimensions        mm



Model Nominal Torque Tn

N • m

Allowable Speed [n] r/mi n SHAFT HOLE DIAMETER  d dz Shaft Hole Length Size Weight kg
Y J J, Z Model D D, S
L, L
HL1 250 8500 12 〜24 27 〜52 90 40 2.5 2
HL2 560 6300 20 〜35 38 〜82 120 55 2.5 5
HL3 1250 4750 30 〜48 60 〜112 160 75 2.5 8
HL4 2500 3870 40 〜63 84 〜142 195 100 3 22
HL5 3150 3450 50 〜75 84 〜142 220 120 3 30
HL6 6300 2720 60 〜85 107〜172 280 140 4 53
HL7 11200 2360 70 〜110 100〜212 320 170 4 98
HL8 16000 2120 80 〜125 132〜212 360 200 5 119
HL9 22400 1850 100〜140 167〜252 410 230 5 197
HL10 35500 1600 110〜180 167〜302 480 280 6 322
HL11 50000 1400 130〜220 202〜352 540 340 6 520
HL12 80000 1220 100〜180 242〜410 630 400 7 714
HL13 125000 1080 190〜300 282〜470 710 465 8 1057
HL14 180000 950 240〜340 330〜550 800 530 8 1956
Remark :HL12、HL13、HL14 When using Z-shaped holes, check whether the counterbore is allowed.
