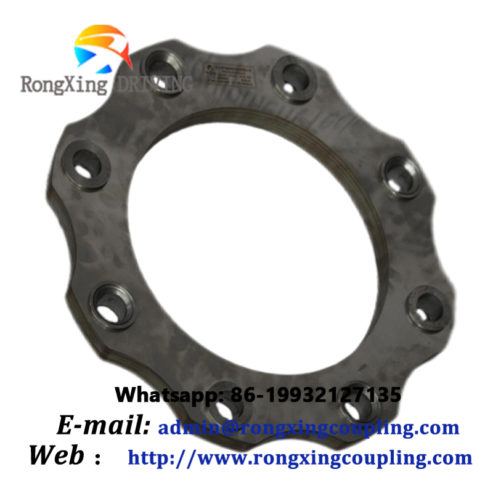

Diaphragm coupling is suitable for connecting two coaxial lines of medium and high speed transmission shafting. With certain axial relative offset compensation ability, smooth transmission, corrosion resistance and other characteristics, operating temperature -20 ~ 250°C, transfer nominal torque 40 ~ 315000N · m
JZM Heavy Machinery Diaphragm Coupling Main Parameters And Dimensions mm
| Model | Nominal Torque TnN • m | Allowable Speed[n] r/min | Shaft Hole Diameter | Shaft Hole Length L | D | D, | S | Twisting Stiffness X106N • m/rad | Inertia Moment kg • m2 | Weight kg |
| d | Y J, | |||||||||
| JZM1 | 40 | 10700 | 14 〜28 | 27 〜62 | 80 | 39 | 8 | 0. 37 | 0. 0026 | 1.37 |
| JZM2 | 63 | 9300 | 20 〜38 | 38 〜82 | 92 | 53 | 8 | 0. 45 | 0. 0073 | 2. 65 |
| JZM3 | 100 | 8400 | 25 〜45 | 44 〜112 | 102 | 63 | 8 | 0. 56 | 0.013 | 4.8 |
| JZM4 | 250 | 6700 | 30 〜55 | 60 〜112 | 128 | 77 | 11 | 0.81 | 0. 042 | 7. 64 |
| JZM5 | 500 | 5900 | 35 〜65 | 60 〜142 | 145 | 91 | 11 | 1.2 | 0. 067 | 9.4 |
| JZM6 | 800 | 5100 | 40 〜75 | 84 〜142 | 168 | 105 | 14 | 1.42 | 0. 165 | 17. 15 |
| JZM7 | 1000 | 4750 | 45 〜80 | 84 〜172 | 180 | 112 | 15 | 1.9 | 0. 27 | 24.5 |
| JZM8 | 1600 | 4300 | 50 〜85 | 84 〜172 | 200 | 120 | 15 | 2. 35 | 0. 387 | 29.4 |
| JZM9 | 2000 | 4200 | 55 〜90 | 84 〜172 | 205 | 120 | 20 | 2. 7 | 0.41 | 30. 38 |
| JZM10 | 2500 | 4000 | 55 〜90 | 84 〜172 | 215 | 128 | 20 | 3. 02 | 0.51 | 33.9 |
| JZM11 | 3150 | 3650 | 60 〜95 | 107〜172 | 235 | 132 | 23 | 3. 46 | 0. 70 | 40. 18 |
| JZM12 | 4000 | 3400 | 60 〜100 | 107〜212 | 250 | 145 | 23 | 3. 67 | 1. 13 | 55. 96 |
mechanical parts recipe 7 days to die , engine parts rebuild , roper washing machine parts , ranger tire machine parts , rowing machine parts , ring frame machine parts name pdf , robinair ac machine parts , ridgid threading machine parts , ridgid sewer machine parts , riccar sewing machine parts , radial drilling machine parts and functions pdf , radial drilling machine parts
Company: Hebei Rongxing Driving Equipment Technology Co., Ltd.
Contact: Spark Wang
Tel: 86- 0311-69772900 86-0318-8966899
Phone / Whatsapp: 86-19932127135
E-mail: admin@rongxingcoupling.com
WEB : http://www.rongxingcoupling.com
Address: North side of Planning 4th Road, Southern Industrial New Town, Jizhou District, Hengshui City, Hebei Province, China
