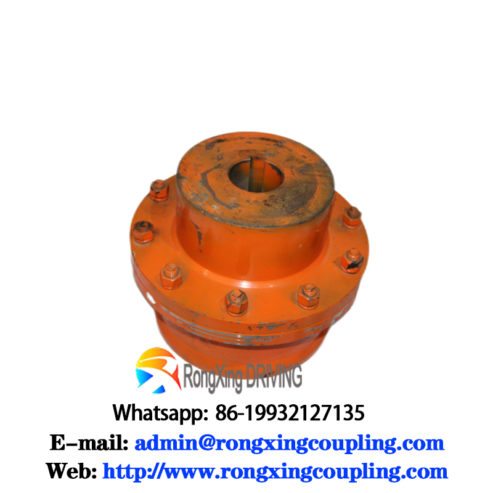

CLZ type gear coupling is suitable for connecting two horizontal coaxial drive shafting. It has a certain ability to compensate the relative offset of two shafts, and transmits nominal torque 0. 71 — 1000KN • m»
CLZ type tooth coupling basic parameters and main dimensions
| Model | Nominal Torque Tn
KN • m |
Allowable speed[n] r/min | Shaft hole diameter d, dz | Shaft hole length L
Y |
D | D, | d2 | D3 | C | Inertia moment kg • m2 | Weight kg |
| CLZ1 | 0. 71 | 3780 | 18 〜40 (60) | 40 〜142 | 170 | 110 | 55 | 95 | 2.5 | 0. 03 | 11.8 |
| CLZ2 | 1.4 | 3000 | 30 〜50 (70) | 82 〜142 | 185 | 125 | 70 | 110 | 2.5 | 0.06 | 16.6 |
| CLZ3 | 3. 15 | 2400 | 40〜60(90) | 112—172 | 220 | 150 | 90 | 145 | 2.5 | 0.12 | 34.8 |
| CLZ4 | 5.6 | 2000 | 45〜75(100) | 112 〜212 | 250 | 175 | 110 | 170 | 2.5 | 0. 22 | 47.8 |
| CLZ5 | 8 | 1680 | 50〜90(120) | 112〜212 | 290 | 200 | 130 | 190 | 5 | 0.44 | 67.3 |
| CLZ6 | 11.2 | 1500 | 60 〜110(130) | 142〜252 | 320 | 230 | 140 | 210 | 5 | 0. 75 | 91 |
| CLZ7 | 18 | 1270 | 65 〜120 (150) | 142〜252 | 350 | 260 | 170 | 240 | 5 | 1.25 | 125 |
| CLZ8 | 23.6 | 1140 | 80 〜140 (170) | 172 〜302 | 380 | 315 | 190 | 270 | 5 | 2.06 | 174 |
| CLZ9 | 28 | 1000 | 90 〜160 (190) | 172 〜352 | 430 | 365 | 210 | 280 | 5 | 2. 56 | 210 |
| CLZ10 | 50 | 850 | 110〜180(220) | 212〜352 | 490 | 420 | 260 | 320 | 5 | 5 | 298 |
| CLZ11 | 71 | 750 | 120—220(250) | 212〜410 | 545 | 470 | 300 | 380 | 5 | 9. 25 | 447 |
| CLZ12 | 100 | 660 | 140—250(280) | 252〜470 | 590 | 520 | 340 | 420 | 5 | 12.5 | 630 |
| CLZ13 | 140 | 600 | 160—280(300) | 302〜470 | 680 | 590 | 380 | 480 | 7.5 | 29.9 | 897 |
| CLZ14 | 200 | 540 | 180—320(340) | 302〜550 | 730 | 650 | 420 | 520 | 7.5 | 42.5 | 1118 |
| CLZ15 | 250 | 480 | 200〜360(380) | 352〜550 | 780 | 700 | 480 | 560 | 7.5 | 56.9 | 1495 |
| CLZ16 | 355 | 425 | 240〜360(420) | 410〜650 | 900 | 785 | 530 | 650 | 10 | 120 | 2008 |
| CLZ17 | 560 | 380 | 260〜450(480) | 410〜650 | 1000 | 885 | 630 | 750 | 10 | 252 | 3021 |
| CLZ18 | 710 | 330 | 300〜530 | 470〜800 | 1100 | 990 | 710 | 820 | 10 | 325 | 4004 |
| CLZ19 | 1000 | 300 | 360〜560 | 550〜800 | 1250 | 1090 | 800 | 920 | 15 | 568 | 5458 |
| Note: 1. The size of mark () in the table is only suitable for D, the maximum allowable shaft hole.
2. The weight and moment of inertia of the coupling are approximate values calculated according to the minimum diameter and maximum length of the shaft hole. 3. The value of C CLZ is 16 when 19 out of 18 shaft holes and 6 when 24 out of 22 out of 20 shaft holes. |
|||||||||||
