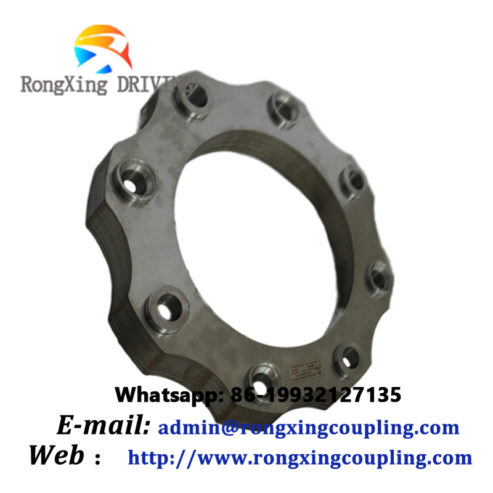

Diaphragm coupling is suitable for connecting two coaxial lines of medium and high speed transmission shafting. With certain axial relative offset compensation ability, smooth transmission, corrosion resistance and other characteristics, operating temperature -20 ~ 250°C, transfer nominal torque 40 ~ 315000N · m
JZM Heavy Machinery Diaphragm Coupling Main Parameters And Dimensions mm
| Model | Nominal Torque TnN • m | Allowable Speed[n] r/min | Shaft Hole Diameter | Shaft Hole Length L | D | D, | S | Twisting Stiffness X106N • m/rad | Inertia Moment kg • m2 | Weight kg |
| d | Y J, | |||||||||
| JZM1 | 40 | 10700 | 14 〜28 | 27 〜62 | 80 | 39 | 8 | 0. 37 | 0. 0026 | 1.37 |
| JZM2 | 63 | 9300 | 20 〜38 | 38 〜82 | 92 | 53 | 8 | 0. 45 | 0. 0073 | 2. 65 |
| JZM3 | 100 | 8400 | 25 〜45 | 44 〜112 | 102 | 63 | 8 | 0. 56 | 0.013 | 4.8 |
| JZM4 | 250 | 6700 | 30 〜55 | 60 〜112 | 128 | 77 | 11 | 0.81 | 0. 042 | 7. 64 |
| JZM5 | 500 | 5900 | 35 〜65 | 60 〜142 | 145 | 91 | 11 | 1.2 | 0. 067 | 9.4 |
| JZM6 | 800 | 5100 | 40 〜75 | 84 〜142 | 168 | 105 | 14 | 1.42 | 0. 165 | 17. 15 |
| JZM7 | 1000 | 4750 | 45 〜80 | 84 〜172 | 180 | 112 | 15 | 1.9 | 0. 27 | 24.5 |
| JZM8 | 1600 | 4300 | 50 〜85 | 84 〜172 | 200 | 120 | 15 | 2. 35 | 0. 387 | 29.4 |
| JZM9 | 2000 | 4200 | 55 〜90 | 84 〜172 | 205 | 120 | 20 | 2. 7 | 0.41 | 30. 38 |
| JZM10 | 2500 | 4000 | 55 〜90 | 84 〜172 | 215 | 128 | 20 | 3. 02 | 0.51 | 33.9 |
| JZM11 | 3150 | 3650 | 60 〜95 | 107〜172 | 235 | 132 | 23 | 3. 46 | 0. 70 | 40. 18 |
| JZM12 | 4000 | 3400 | 60 〜100 | 107〜212 | 250 | 145 | 23 | 3. 67 | 1. 13 | 55. 96 |
turner cnc , turner cnc inc , turner cnc tomahawk , cnc lathe part unloader , uccnc tutorial , used cnc parts , used cnc parts for sale , cnc turning parts video , cnc turning parts vice , cnc turning parts vs milling , cnc turning parts vacancy in singapore , cnc turning parts vacuum , cnc turning parts vw , cnc turning parts vacancy in hyderabad , cnc turning parts vacancy , cnc turning parts vacancy in chennai
Company: Hebei Rongxing Driving Equipment Technology Co., Ltd.
Contact: Spark Wang
Tel: 86- 0311-69772900 86-0318-8966899
Phone / Whatsapp: 86-19932127135
E-mail: admin@rongxingcoupling.com
WEB : http://www.rongxingcoupling.com
Address: North side of Planning 4th Road, Southern Industrial New Town, Jizhou District, Hengshui City, Hebei Province, China
