GⅡCL Drum Gear Coupling Suitable for connecting two horizontal coaxial axis drive shaft system, with a certain Angle to compensate the relative offset performance of two shafts drum tooth coupling, working environment temperature -20 ~ +80C, transmission nominal torque is 0. 4-4500KN-m

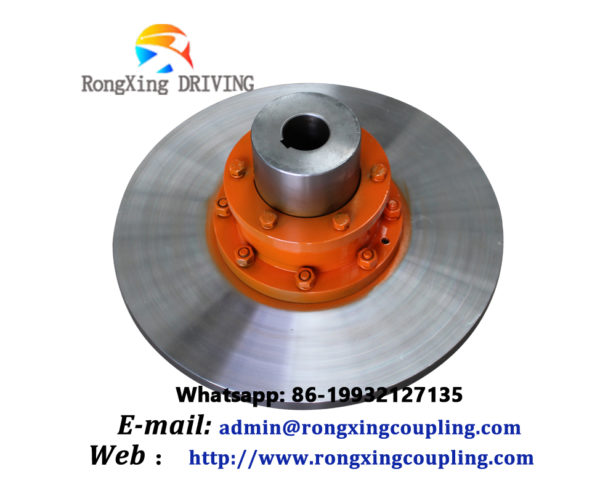

WGP Brake Wheel Drum Gear Coupling
| Type | Nominal Torque TnKN・m | Allowable Speed [n] r/mi n | Shaft Hole Diameter d dz mm | Shaft Hole Length L | % | D | D, | d2 | B | N | C | C, | c2 | Inertia Moment kg • m~ | Weight kg |
| Y J, Z, | |||||||||||||||
| WGP1 | 0. 71 | 4000 | 12 〜42 | 32 〜112 | 315 | 122 | 98 | 60 | 58 | 38 | 3/30 | 19/29 | 12/18 | 0. 008 | 5.7 |
| WGP2 | 1.25 | 4000 | 22 〜56 | 52 〜112 | 315 | 150 | 118 | 77 | 68 | 38 | 3/20 | 23/29 | 16 | 0. 02 | 10 |
| WGP3 | 2.5 | 3550 | 22 〜63 | 52 〜142 | 355 | 170 | 140 | 90 | 80 | 49 | 3/33 | 23/36 | 16/25 | 0. 05 | 17 |
| WGP4 | 4.5 | 2500 | 30 〜80 | 82 〜172 | 400450500 | 200 | 160 | 112 | 90 | 45 | 3/13 | 29/41 | 17 | 0. 1 | 26 |
| WGP5 | 7. 1 | 2500 | 30 〜90 | 82 〜172 | 225 | 180 | 128 | 100 | 45 | 3/23 | 29/41 | 19 | 0. 17 | 35 | |
| WGP6 | 10 | 2000 | 32 〜100 | 82 〜212 | 560630710 | 245 | 200 | 145 | 112 | 44 | 5/35 | 28/48 | 20 | 0.3 | 52 |
| WGP7 | 14 | 1700 | 32 〜110 | 82 〜212 | 560630710 | 272 | 230 | 160 | 122 | 44 | 5/45 | 38/48 | 20 | 0.5 | 68 |
| WGP8 | 20 | 1700 | 55 〜125 | 107〜212 | 560630710 | 290 | 245 | 176 | 136 | 44 | 5/29 | 38/48 | 20/34 | 0.7 | 80 |
| WGP9 | 25 | 1600 | 65 〜140 | 107〜252 | 630710800 | 315 | 265 | 190 | 140 | 58 | 5 | 38/53 | 28/38 | 1 | 107 |
| WGP10 | 40 | 1600 | 75 〜160 | 132〜302 | 630710800 | 355 | 300 | 225 | 165 | 58 | 5/28 | 43/63 | 20/38 | 1.8 | 160 |
| WGP11 | 56 | 1400 | 80 〜180 | 167〜302 | 710 800 900 | 412 | 345 | 256 | 180 | 58 | 8/15 | 51/66 | 32 | 3.7 | 215 |
| WGP12 | 80 | 1400 | 120〜200 | 167〜352 | 710 800 900 | 440 | 375 | 288 | 207 | 58 | 8 | 51/76 | 32/45 | 6.4 | 305 |
| WGP13 | 112 | 1400 | 140〜220 | 202〜352 | 800900 | 490 | 425 | 320 | 235 | 58 | 8 | 56/76 | 32/38 | 11 | 395 |
| WGP14 | 160 | 1200 | 160〜260 | 242〜410 | 9001000 | 545 | 462 | 362 | 265 | 65 | 10 | 68/78 | 10/32 | 18 | 530 |
Note: 1. The weight and moment of inertia in the table are not calculated for the brake disc, and their values are shown in Table 2. 2.
Brake Disc Main Size, Weight And Moment Of Inertia
| Disc diameter D。 | T | K | S | D3max | Inertia Moment kg ・ m2 | Weight kg | |||
| I | II | I | II | I | II | ||||
| 315 | 15 | 10 | 42 | 180 | 155 | 0. 116 | 0. 11 | 8.5 | 6. 7 |
| 355 | 15 | 10 | 54 | 200 | 175 | 0. 192 | 0. 178 | 11.4 | 9. 9 |
| 400 | 15 | 14 | 54 | 255 | 230 | 0. 32 | 0. 29 | 15.2 | 12.4 |
| 450 | 15 | 16 | 54 | 305 | 280 | 0. 55 | 0. 46 | 19.7 | 15.6 |
| 500 | 15 | 18 | 54 | 325 | 295 | 0. 83 | 0.71 | 25 | 20 |
| 560 | 15 | 18 | 54 | 350 | 320 | 1.28 | 1. 13 | 30. 7 | 25.6 |
| 630 | 15 | 20 | 54 | 400 | 360 | 2. 06 | 1.83 | 38.8 | 33 |
| 710 | 15 | 20 | 54 | 480 | 420 | 3. 32 | 2.9 | 46.5 | 39.4 |
| 800 | 15 | 24 | 70 | 540 | 500 | 5. 87 | 4.8 | 67.8 | 52.7 |
| 900 | 15 | 24 | 70 | 600 | 560 | 9.3 | 7.9 | 86.6 | 70.3 |
| 1000 | 20 | 30 | 80 | 620 | 560 | 17.4 | 15. 7 | 128.8 | 115. 1 |
