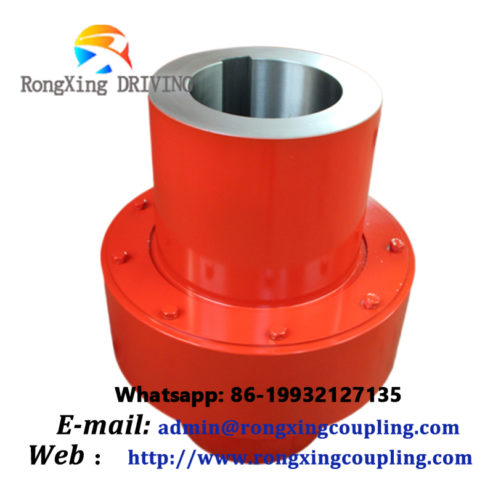

ZL type elastic pin tooth coupling is suitable for coaxial axis drive shaft system, using nylon rod longitudinal section shear strength, can transfer a large torque, 0. 112 ~ 2800KN • m. Working temperature -20 ~ 70C, can partially replace the tooth coupling. It has certain compensating axial offset energy force and general damping performance.
ZL type is used for ordinary cylindrical shaft holes and ZLD type is used for conical holes. Pay attention to selection.
Allowable compensation for axial soil 0.5 ~5mm
Radial direction 0. 3 ~ 1. 5mm
Angle to 0.5.
Zl Type Elastic Pin Tooth Coupling Main Parameters And Dimensions mm
| Model | Nominal Torque TnKN • m | Allowable Speed [n] r/min | Shaft Hole Diameter d | Shaft Hole Length | D | D, | B | S | kg. m2 | Weight kg |
| Y丄J1 | ||||||||||
| L | ||||||||||
| ZL1 | 0. 112 | 5000 | 12 〜24 | 27 〜52 | 76 | 40 | 42 | 2.5 | 0. 001 | 1.67 |
| ZL2 | 0. 25 | 5000 | 16 〜32 | 44 〜82 | 90 | 50 | 50 | 2.5 | 0. 003 | 3. 00 |
| ZL3 | 0. 63 | 4500 | 25 〜42 | 44 〜112 | 118 | 65 | 70 | 3.0 | 0.012 | 7.31 |
| ZL4 | 1.8 | 4200 | 40 〜60 | 84 〜142 | 158 | 90 | 90 | 4 | 0. 045 | 16. 20 |
| ZL5 | 4.5 | 4000 | 50 〜80 | 84 〜172 | 192 | 120 | 90 | 4 | 0. 108 | 27. 02 |
| ZL6 | 8 | 3300 | 60 〜95 | 107〜172 | 230 | 130 | 112 | 5 | 0. 242 | 40. 89 |
| ZL7 | 11.2 | 2900 | 70 〜110 | 107〜212 | 260 | 160 | 112 | 5 | 0. 443 | 59. 60 |
| ZL8 | 18 | 2500 | 80 〜130 | 132〜252 | 300 | 190 | 128 | 6 | 0. 908 | 94. 67 |
| ZL9 | 25 | 2300 | 90 〜150 | 132〜252 | 335 | 220 | 150 | 7 | 1.733 | 138. 1 |
| ZL10 | 31.5 | 2100 | 100〜170 | 167〜302 | 355 | 245 | 152 | 8 | 2. 422 | 169.3 |
| ZL11 | 40 | 2000 | 110〜180 | 167〜302 | 380 | 260 | 172 | 8 | 3. 369 | 203. 1 |
| ZL12 | 63 | 1700 | 130〜200 | 202〜352 | 445 | 290 | 182 | 8 | 6. 524 | 296.6 |
| ZL13 | 100 | 1500 | 150〜240 | 202〜410 | 515 | 345 | 218 | 8 | 14. 19 | 469.2 |
| ZL14 | 125 | 1400 | 170〜260 | 242〜410 | 560 | 390 | 218 | 8 | 21.67 | 621. 7 |
| ZL15 | 160 | 1300 | 190〜300 | 282〜470 | 590 | 420 | 240 | 10 | 29.52 | 730.5 |
| ZL16 | 250 | 1000 | 220〜340 | 282〜550 | 695 | 490 | 265 | 10 | 62. 47 | 1144 |
| ZL17 | 355 | 950 | 240〜380 | 330〜550 | 770 | 550 | 285 | 10 | 106.0 | 1557 |
| ZL18 | 450 | 850 | 250〜420 | 330〜650 | 860 | 605 | 300 | 13 | 175.4 | 2062 |
| ZL19 | 630 | 750 | 280〜450 | 380〜650 | 970 | 695 | 322 | 14 | 323.2 | 3068 |
| ZL20 | 1120 | 650 | 320〜500 | 380〜650 | 1160 | 800 | 355 | 15 | 699.4 | 4715 |
| ZL21 | 1800 | 530 | 380〜630 | 450〜800 | 1440 | 1020 | 360 | 18 | 1880 | 8699 |
| ZL22 | 2240 | 500 | 420〜750 | 540〜800 | 1520 | 1100 | 405 | 19 | 2596 | 9473 |
| ZL23 | 2800 | 460 | 480〜850 | 540〜880 | 1640 | 1240 | 440 | 20 | 3982 | 12095 |
| Note: 1. Weight and moment of inertia are calculated according to Y/J, combination type of shaft holes and minimum shaft holes. 2. Short-term overload shall not exceed 2 times of the nominal torque Tn value. | ||||||||||
