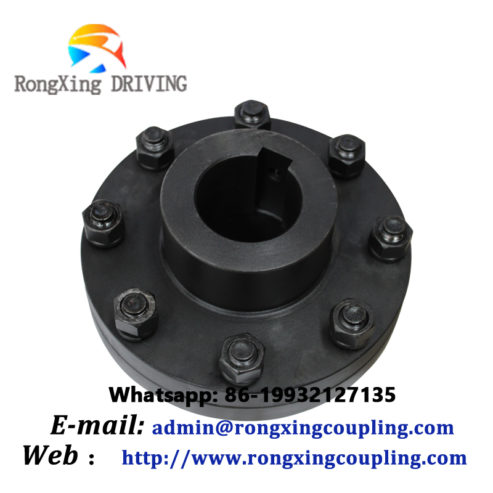

YL Flange Coupling is a rigid coupling, suitable for coaxial axis drive shaft system, transfer torque is 63-100000N. m.
YL Flange Coupling Parameters And Dimensions
| Type | Nominal Torque TnN • m | Allowable Speed [n] r/min | Shaft Hole Diameter d | Shaft Hole Length L | D | D, | b | S | b, | Blot | Inertia Moment kg • m | Weightkg | |
| Y J. | d. | n | |||||||||||
| YL1 | 63 | 6300 | 22 〜30 | 38 〜82 | 120 | 48 | 36 | 8 | 52 | M10 | 4 | 0. 006 | 4. 10 |
| YL2 | 200 | 5800 | 30 〜42 | 60 〜112 | 130 | 68 | 0. 008 | 6. 97 | |||||
| YL3 | 400 | 5000 | 40 〜50 | 84 〜112 | 150 | 80 | 40 | 56 | 0. 021 | 9. 38 | |||
| YL4 | 800 | 4400 | 50 〜63 | 84 〜142 | 170 | 100 | M12 | 8 | 0. 039 | 23. 27 | |||
| YL5 | 2000 | 3600 | 63 〜80 | 107〜172 | 210 | 130 | 50 | 10 | 68 | 0. 122 | 30. 72 | ||
| YL6 | 5000 | 2800 | 80 〜100 | 132〜212 | 260 | 160 | 66 | 84 | M16 | 0. 360 | 57. 95 | ||
| YL7 | 10000 | 2500 | 100〜125 | 167〜212 | 300 | 200 | 72 | 90 | 10 | 0. 845 | 86. 10 | ||
| YL8 | 25000 | 1900 | 125〜160 | 167〜302 | 400 | 260 | 80 | 98 | M24 | 2. 693 | 202.3 | ||
| YL9 | 50000 | 1600 | 160—200 | 242〜352 | 460 | 320 | 92 | 12 | 112 | 16 | 6. 962 | 326 | |
| YL10 | 100000 | 1200 | 200〜250 | 282〜410 | 590 | 400 | 104 | 124 | M30 | 20. 550 | 622 | ||
| Note:
① Weight and moment of inertia are approximate values calculated according to the minimum diameter and maximum length of the shaft hole of the I-type coupling. ② The same type of shaft hole can be arbitrarily combined. |
|||||||||||||
