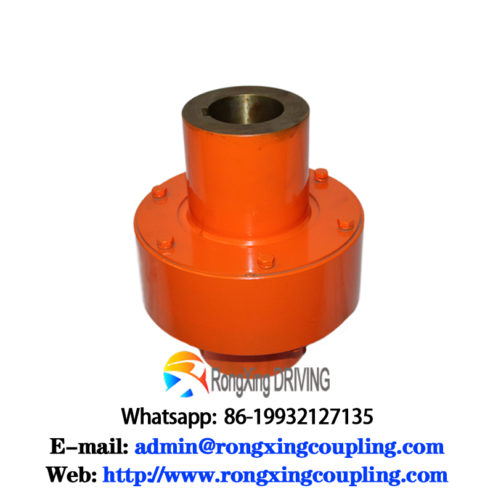

Zl Elastic Pin Tooth Coupling is suitable for the drive shaft system of the coaxial line, using nylon rod longitudinal section shear strength, can transfer a large torque, 0. 112 ~ 2800KN • m. Working temperature -20 ~ 70C, can partially replace the tooth coupling. It has certain compensating axial offset energy force and general damping performance.
ZL type is used for ordinary cylindrical shaft holes and ZLD type is used for conical holes. Pay attention to selection.
Allowable compensation for axial soil 0.5 ~5mm
Radial direction 0. 3 ~ 1. 5mm
Angle to 0.5.
| Model | Nominal TorqueTn
KN • m |
Allowable speed [n] r/min | Shaft hole diameter d | Overall length | D | D, | B | S | inertia moment kg. m2 | Weight
kg |
| Y Model丄ModelModel | ||||||||||
| L | ||||||||||
| ZL1 | 0. 112 | 5000 | 12 〜24 | 27 〜52 | 76 | 40 | 42 | 2.5 | 0. 001 | 1.67 |
| ZL2 | 0. 25 | 5000 | 16 〜32 | 44 〜82 | 90 | 50 | 50 | 2.5 | 0. 003 | 3. 00 |
| ZL3 | 0. 63 | 4500 | 25 〜42 | 44 〜112 | 118 | 65 | 70 | 3.0 | 0.012 | 7.31 |
| ZL4 | 1.8 | 4200 | 40 〜60 | 84 〜142 | 158 | 90 | 90 | 4 | 0. 045 | 16. 20 |
| ZL5 | 4.5 | 4000 | 50 〜80 | 84 〜172 | 192 | 120 | 90 | 4 | 0. 108 | 27. 02 |
| ZL6 | 8 | 3300 | 60 〜95 | 107〜172 | 230 | 130 | 112 | 5 | 0. 242 | 40. 89 |
| ZL7 | 11.2 | 2900 | 70 〜110 | 107〜212 | 260 | 160 | 112 | 5 | 0. 443 | 59. 60 |
| ZL8 | 18 | 2500 | 80 〜130 | 132〜252 | 300 | 190 | 128 | 6 | 0. 908 | 94. 67 |
| ZL9 | 25 | 2300 | 90 〜150 | 132〜252 | 335 | 220 | 150 | 7 | 1.733 | 138. 1 |
| ZL10 | 31.5 | 2100 | 100〜170 | 167〜302 | 355 | 245 | 152 | 8 | 2. 422 | 169.3 |
| ZL11 | 40 | 2000 | 110〜180 | 167〜302 | 380 | 260 | 172 | 8 | 3. 369 | 203. 1 |
| ZL12 | 63 | 1700 | 130〜200 | 202〜352 | 445 | 290 | 182 | 8 | 6. 524 | 296.6 |
| ZL13 | 100 | 1500 | 150〜240 | 202〜410 | 515 | 345 | 218 | 8 | 14. 19 | 469.2 |
| ZL14 | 125 | 1400 | 170〜260 | 242〜410 | 560 | 390 | 218 | 8 | 21.67 | 621. 7 |
| ZL15 | 160 | 1300 |
