GⅡCL Drum Gear Coupling Suitable for connecting two horizontal coaxial axis drive shaft system, with a certain Angle to compensate the relative offset performance of two shafts drum tooth coupling, working environment temperature -20 ~ +80C, transmission nominal torque is 0. 4-4500KN-m

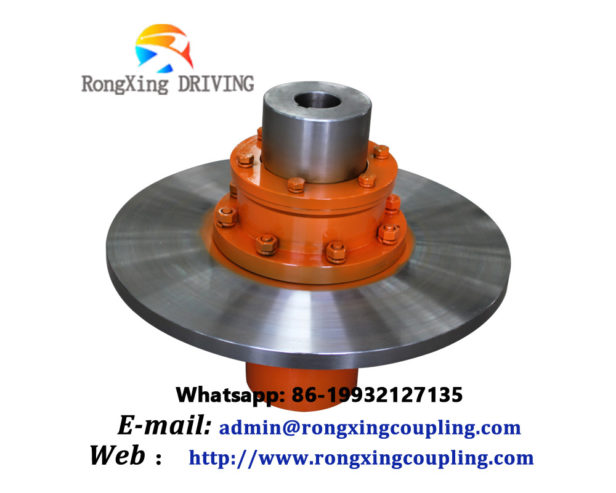

WGP Brake Wheel Drum Gear Coupling
| Type | Nominal Torque TnKN・m | Allowable Speed [n] r/mi n | Shaft Hole Diameter d dz mm | Shaft Hole Length L | % | D | D, | d2 | B | N | C | C, | c2 | Inertia Moment kg • m~ | Weight kg |
| Y J, Z, | |||||||||||||||
| WGP1 | 0. 71 | 4000 | 12 〜42 | 32 〜112 | 315 | 122 | 98 | 60 | 58 | 38 | 3/30 | 19/29 | 12/18 | 0. 008 | 5.7 |
| WGP2 | 1.25 | 4000 | 22 〜56 | 52 〜112 | 315 | 150 | 118 | 77 | 68 | 38 | 3/20 | 23/29 | 16 | 0. 02 | 10 |
| WGP3 | 2.5 | 3550 | 22 〜63 | 52 〜142 | 355 | 170 | 140 | 90 | 80 | 49 | 3/33 | 23/36 | 16/25 | 0. 05 | 17 |
| WGP4 | 4.5 | 2500 | 30 〜80 | 82 〜172 | 400450500 | 200 | 160 | 112 | 90 | 45 | 3/13 | 29/41 | 17 | 0. 1 | 26 |
| WGP5 | 7. 1 | 2500 | 30 〜90 | 82 〜172 | 225 | 180 | 128 | 100 | 45 | 3/23 | 29/41 | 19 | 0. 17 | 35 | |
| WGP6 | 10 | 2000 | 32 〜100 | 82 〜212 | 560630710 | 245 | 200 | 145 | 112 | 44 | 5/35 | 28/48 | 20 | 0.3 | 52 |
| WGP7 | 14 | 1700 | 32 〜110 | 82 〜212 | 560630710 | 272 | 230 | 160 | 122 | 44 | 5/45 | 38/48 | 20 | 0.5 | 68 |
| WGP8 | 20 | 1700 | 55 〜125 | 107〜212 | 560630710 | 290 | 245 | 176 | 136 | 44 | 5/29 | 38/48 | 20/34 | 0.7 | 80 |
| WGP9 | 25 | 1600 | 65 〜140 | 107〜252 | 630710800 | 315 | 265 | 190 | 140 | 58 | 5 | 38/53 | 28/38 | 1 | 107 |
| WGP10 | 40 | 1600 | 75 〜160 | 132〜302 | 630710800 | 355 | 300 | 225 | 165 | 58 | 5/28 | 43/63 | 20/38 | 1.8 | 160 |
| WGP11 | 56 | 1400 | 80 〜180 | 167〜302 | 710 800 900 | 412 | 345 | 256 | 180 | 58 | 8/15 | 51/66 | 32 | 3.7 | 215 |
| WGP12 | 80 | 1400 | 120〜200 | 167〜352 | 710 800 900 | 440 | 375 | 288 | 207 | 58 | 8 | 51/76 | 32/45 | 6.4 | 305 |
| WGP13 | 112 | 1400 | 140〜220 | 202〜352 | 800900 | 490 | 425 | 320 | 235 | 58 | 8 | 56/76 | 32/38 | 11 | 395 |
| WGP14 | 160 | 1200 | 160〜260 | 242〜410 | 9001000 | 545 | 462 | 362 | 265 | 65 | 10 | 68/78 | 10/32 | 18 | 530 |
Note: 1. The weight and moment of inertia in the table are not calculated for the brake disc, and their values are shown in Table 2. 2.
Brake Disc Main Size, Weight And Moment Of Inertia
| Disc diameter D。 | T | K | S | D3max | Inertia Moment kg ・ m2 | Weight kg | |||
| I | II | I | II | I | II | ||||
| 315 | 15 | 10 | 42 | 180 | 155 | 0. 116 | 0. 11 | 8.5 | 6. 7 |
| 355 | 15 | 10 | 54 | 200 | 175 | 0. 192 | 0. 178 | 11.4 | 9. 9 |
| 400 | 15 | 14 | 54 | 255 | 230 | 0. 32 | 0. 29 | 15.2 | 12.4 |
| 450 | 15 | 16 | 54 | 305 | 280 | 0. 55 | 0. 46 | 19.7 | 15.6 |
| 500 | 15 | 18 | 54 | 325 | 295 | 0. 83 | 0.71 | 25 | 20 |
| 560 | 15 | 18 | 54 | 350 | 320 | 1.28 | 1. 13 | 30. 7 | 25.6 |
| 630 | 15 | 20 | 54 | 400 | 360 | 2. 06 | 1.83 | 38.8 | 33 |
| 710 | 15 | 20 | 54 | 480 | 420 | 3. 32 | 2.9 | 46.5 | 39.4 |
| 800 | 15 | 24 | 70 | 540 | 500 | 5. 87 | 4.8 | 67.8 | 52.7 |
| 900 | 15 | 24 | 70 | 600 | 560 | 9.3 | 7.9 | 86.6 | 70.3 |
| 1000 | 20 | 30 | 80 | 620 | 560 | 17.4 | 15. 7 | 128.8 | 115. 1 |
cnc lathe parts name , cnc lathe parts out of round , parts of cnc turning machine , cnc lathe part puller , in cnc turning part program g01 represents , cnc turning parts qual , cnc turning parts qualified , cnc turning parts quality , cnc turning parts questions , cnc turning parts quote , cnc turning parts quiz , cnc turning parts qp , cnc turning parts quality bowling , cnc turning parts qt8
Company: Hebei Rongxing Driving Equipment Technology Co., Ltd.
Contact: Spark Wang
Tel: 86- 0311-69772900 86-0318-8966899
Phone / Whatsapp: 86-19932127135
E-mail: admin@rongxingcoupling.com
WEB : http://www.rongxingcoupling.com
Address: North side of Planning 4th Road, Southern Industrial New Town, Jizhou District, Hengshui City, Hebei Province, China
